Prevention and Suppression of Leaks in the Aqueducts of the Immediate Action Plan (PAI) in the Federal District, State of Mexico and Hidalgo.
Prevention and Suppression of Leaks in the Aqueducts of the Immediate Action Plan (PAI) in the Federal District, State of Mexico and Hidalgo

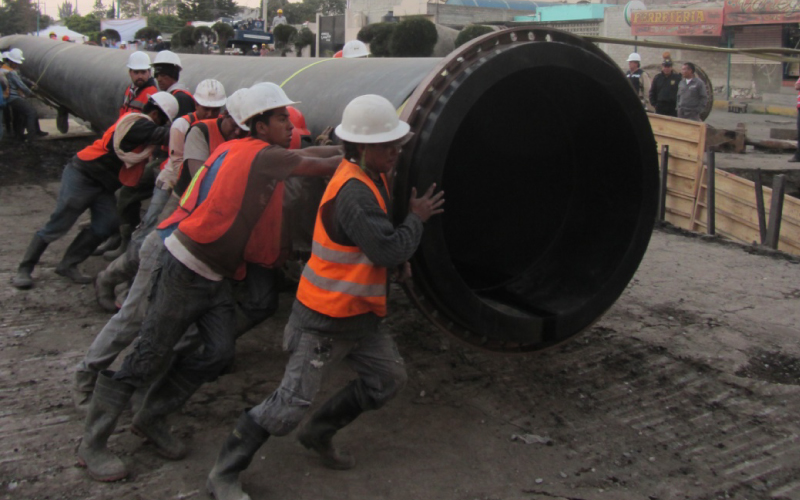

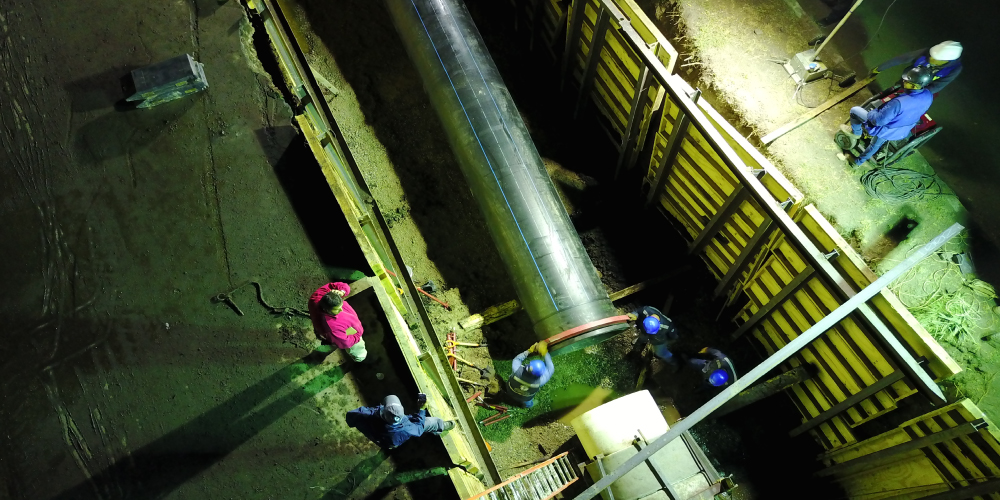

Works for the replacement of 60 meters of reinforced concrete pipe by high density polyethylene (HDPE) pipe 48 "in diameter. 13 + 000 to 13 + 060 of the Tláhuac-Nezahualcóyotl System.
Supply and installation of a 48 "diameter butterfly valve in the Tláhuac-Nezahualcóyotl System.
Materials, design and construction of 3 valve boxes were supplied for the protection of the accessories of the branch.
Emergency work to repair pipe by decoupling the joint with metal saddle repair 48 "diameter pre-stressed concrete (PCCP) 48" diameter in the Tláhuac - Nezahualcóyotl System .. p>
Emergency work to replace 2 collapsed tubes 48 "in diameter due to structural failure in the Tláhuac - Nezahualcóyotl System.
Demolition of the pipe in sections, extraction outside of the pit and removal of segments of pre-stressed concrete pipe 48 "in diameter resulting from the demolition of pipes of 5.00 m in length.

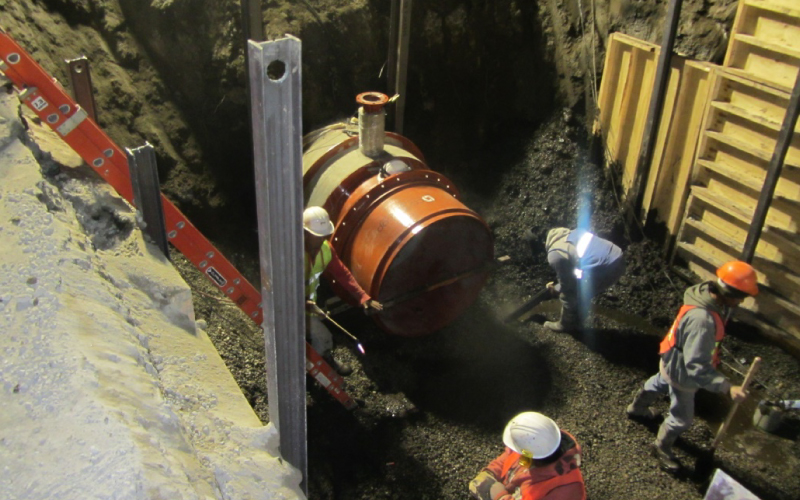

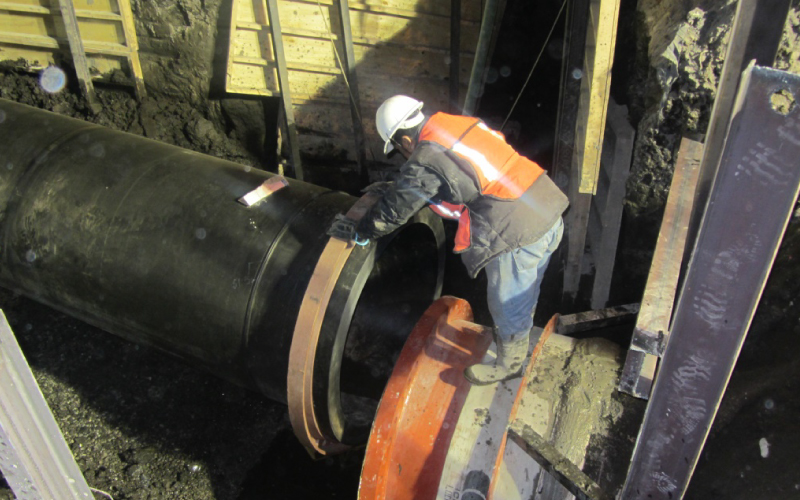

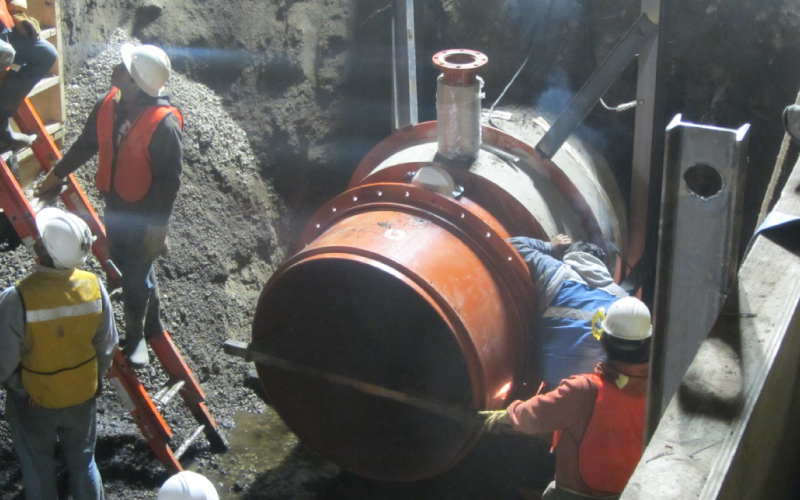

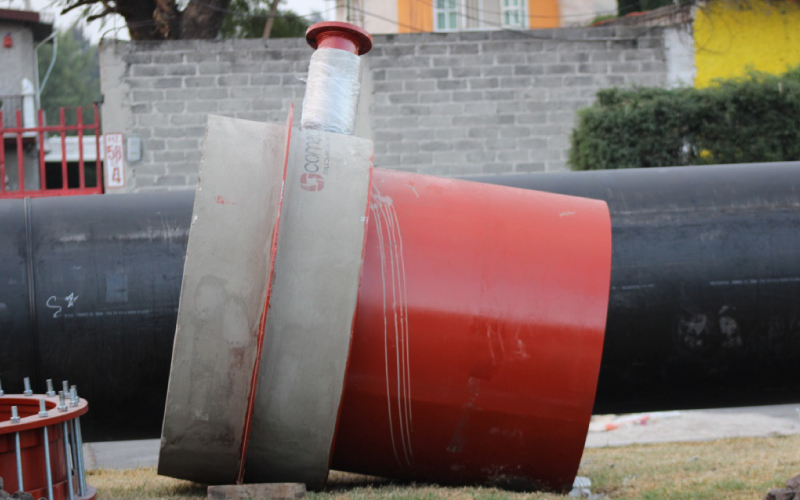

Installation of concrete closure of 1,200 mm (48 ") diameter, with sliding hoods, composed of three special pieces, to give a total length of 5.0 m of the brand of pipe COMECOP, composed of two concrete adapters of spike x spike , bell x spike and a central spool with sliding bells for a working pressure of 150 mca, including radial outlet of 24 "diameter, with a tube length of 60 cm and flange of the same diameter, with flanged reduction of 24" to 10 " , with blind cover.

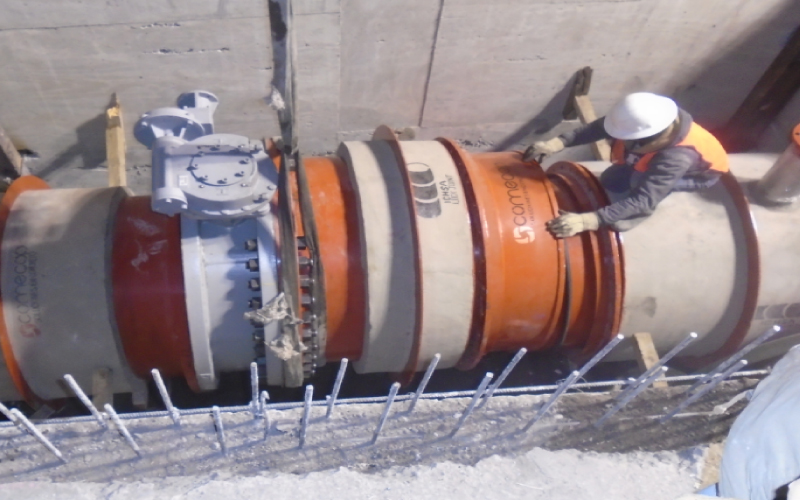

Supply and installation of a 48 "sectioning valve in the Tláhuac - Nezahualcóyotl System line at the entrance to the Caldera Tank.
Forensic analysis of the prestressed concrete pipes replaced.
