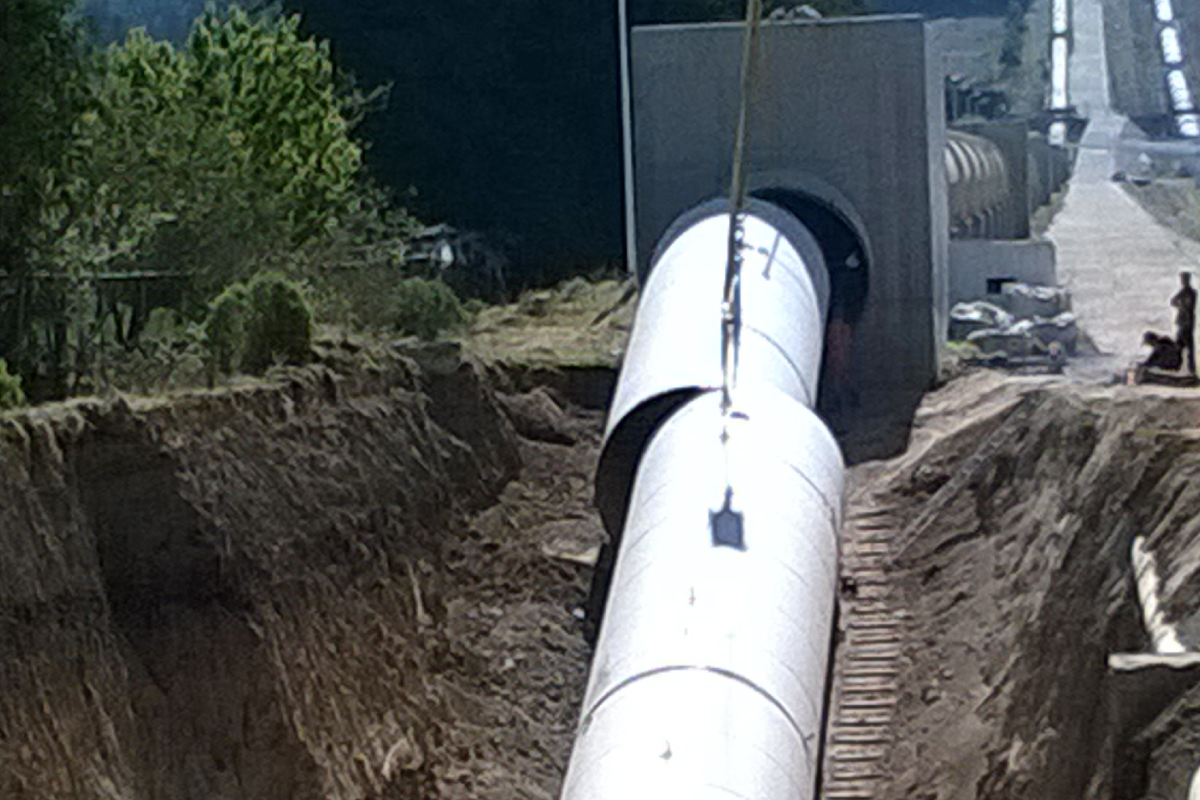

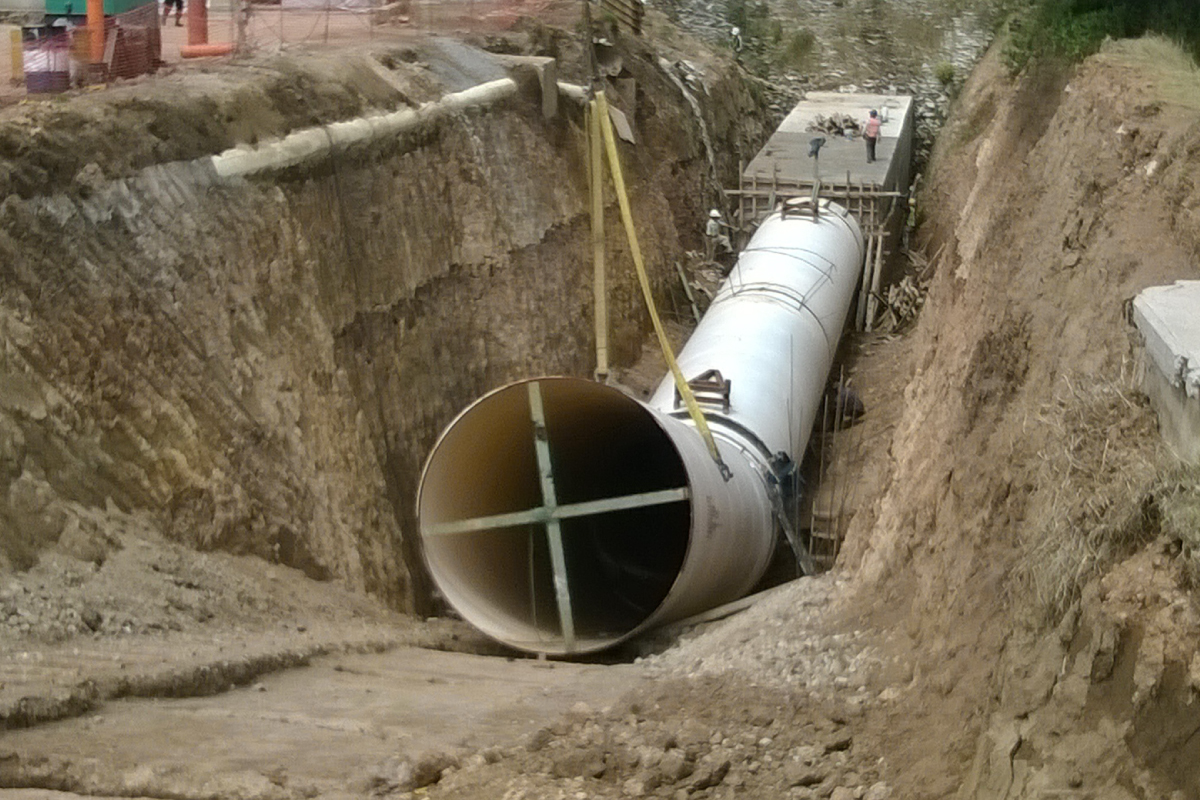

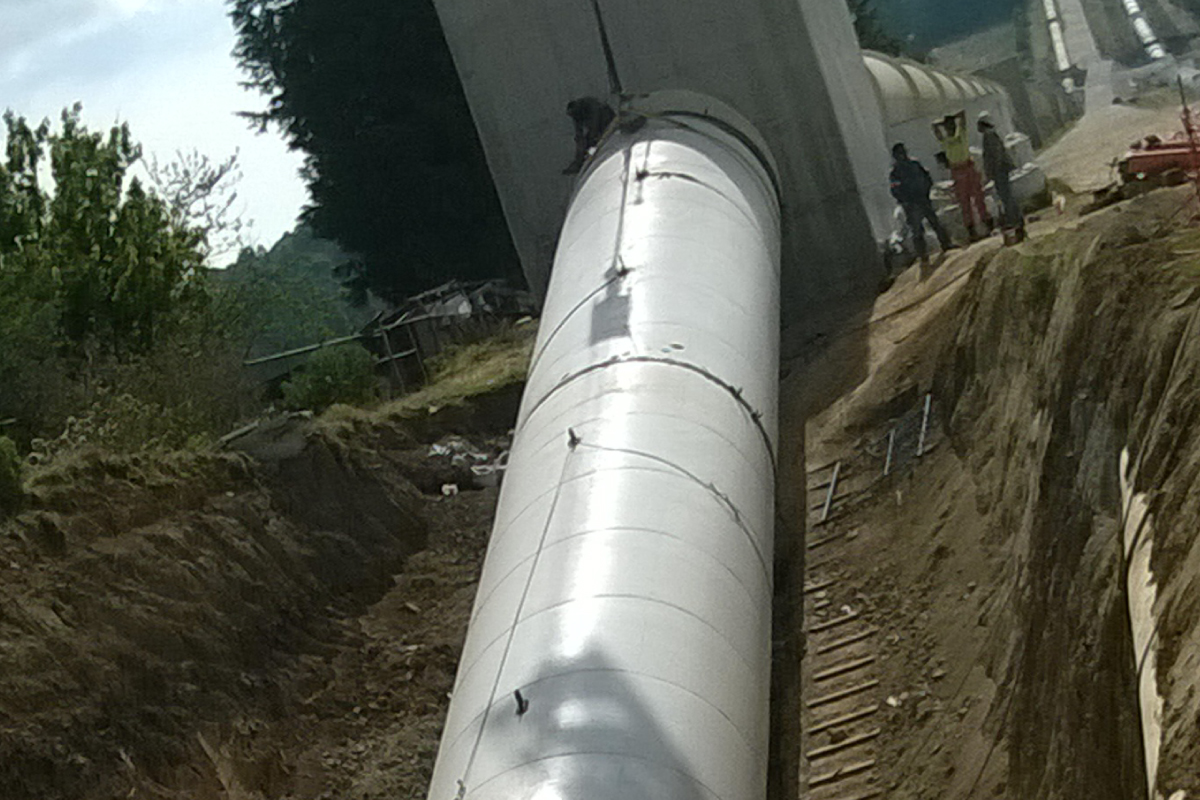

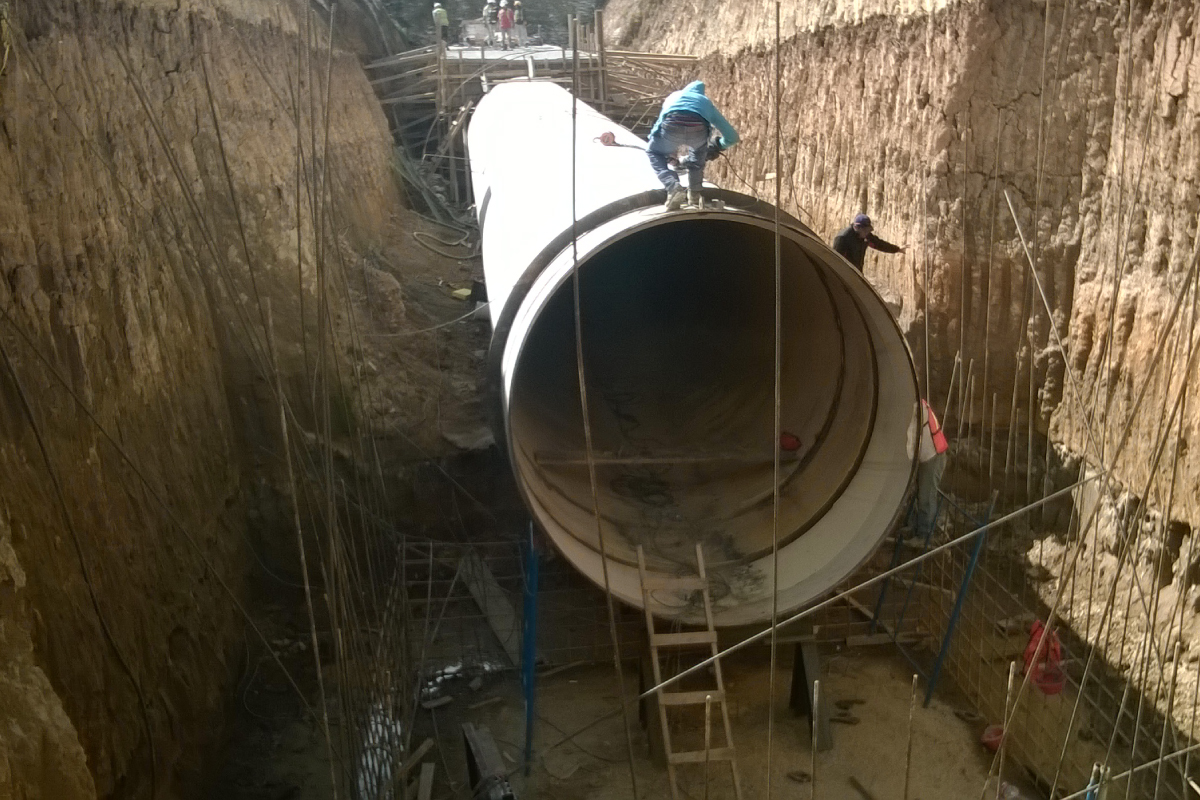

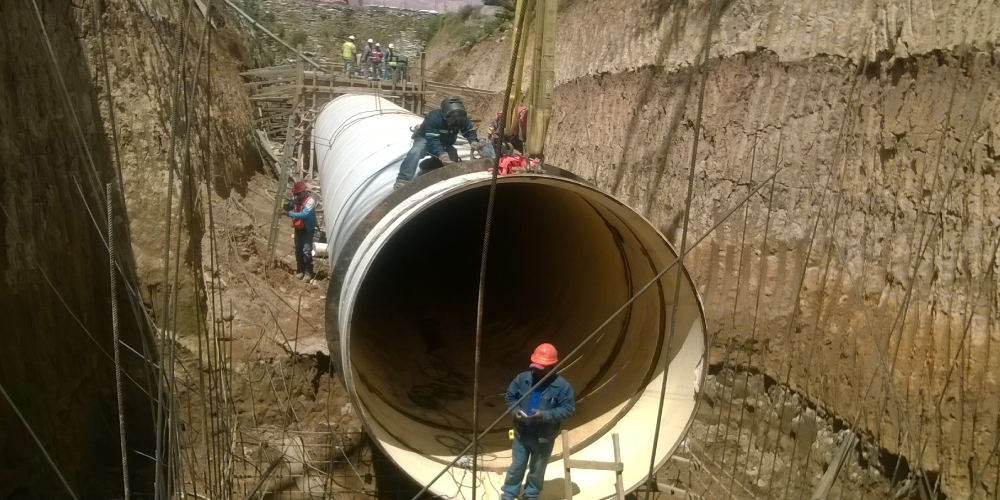

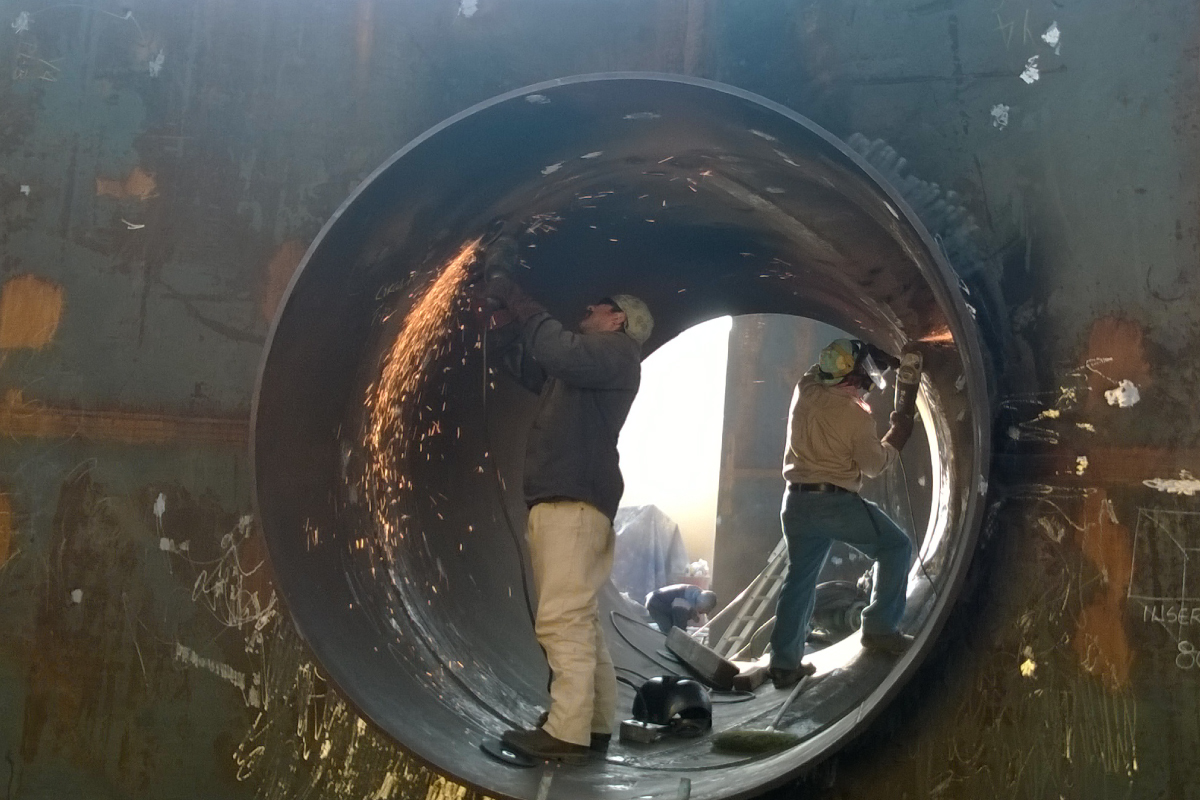

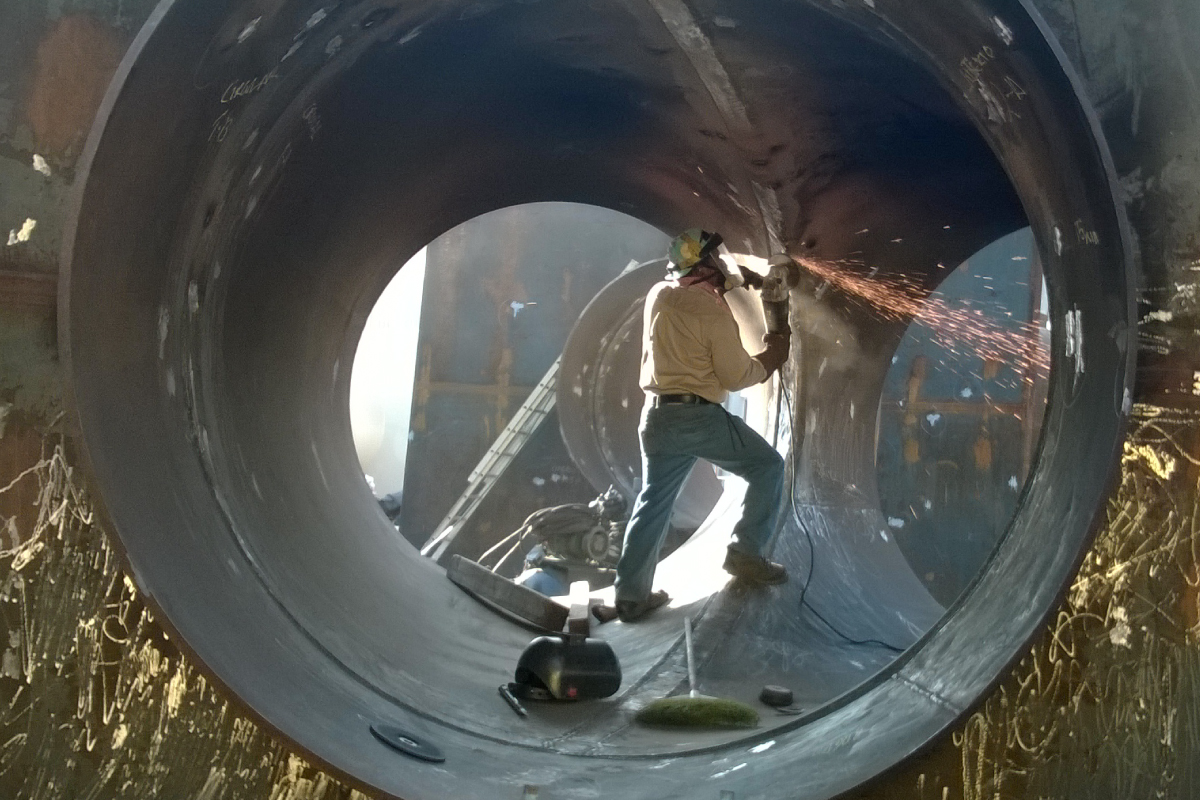

Construction of the Third Stage of the 2nd High Pressure Line of the Pumping Plant 5 to the Oscillation Tower 5, Cutzamala System, State of Mexico.
Construction of the Third Stage of the 2nd High Pressure Line of the Pumping Plant 5 to the Oscillation Tower 5, Cutzamala System, State of Mexico.
Steel pipe supplies, special steel parts, 2 (two) butterfly type isolation valves, man entry access, 2 (two) steel type and 114 "diameter fittings, for the interconnection of the high pressure lines 1 and 2 of the Cutzamala System in an approximate length of 190 m, according to project.
Supplies for the construction of the new discharge manifold of the Pumping Plant 5.
Supply and installation of extension manufactured in API 5L x70 carbon steel pipe, with a thickness of ¾ "(19.05mm), with internal diameter of 52" x 39.37 "(1,320.8mm x 1,000.0mm) and total length of 1,500.0mm, with bevelled ends for welding in the field.
Supply and installation of extension made of API 5L x70 carbon steel pipe, with a thickness of 1 ¼ "(31.75mm), with an inside diameter of 108" (2,743.2mm) and a total length of 3,000mm, with bevelled ends to be welded in the field.
Supply and installation of insert type YEE, main body and bypass manufactured in API 5L x70 carbon steel pipe, with a thickness of 1 ¼ "(31.75mm), with an internal diameter of 92" (2,336.8mm), with triple plate reinforcement made of structural steel ASTM A36, with a thickness of 5 "(127mm), with bevelled ends for welding in the field.
Supply and installation of throttle valve, bidirectional operation for drinking water, body and disc manufactured in ductile iron ASTM A536 grade 65-45-12 (EN-JS 1020), seal in EPDM, arrow stainless steel 630 and SS 304 v5 EPDM seal and disc with double eccentricity with manual gear actuator vertical position, electric actuator, with IP68 protection, power supply at 440v, 60 hz, open-closed mechanical position indicator, flange preparation for actuator mounting electrical, flanged ends according to the AWWA C207 class E standard, for a PN40 pressure, inner diameter of 52 "(1,320.8mm).
Supply and installation of type X insert, main body and bypass made of API 5L x70 carbon steel pipe, with a thickness of 1 "(25.4mm), with an internal diameter of 52" (1,320.8mm), with reinforcement of four plates made of structural steel ASTM A36, with a thickness of 2.75 "(69.85mm), with bevelled ends for field welding.
Supply and installation of type I expansion joint made of API 5L x42 carbon steel pipe, with standard grade SAE-5 (ASTM A307) hexagonal bolt and nut and 114 "diameter (2,895.6mm), with bevelled ends to be welded in the field.
Supply and installation of 1/8 "thick aramid fiber gaskets, ASTM A193 grade B7 screws, ASTM A194 hexagonal nuts 2h grade and ASTM F436 pressure washers, inner and outer coating with a minimum thickness of 25mm according to with AWWA C550 standard.
Supply and installation of multi-turn electric actuator with electronic actuator control, with flanged adapter, IP68 protection, power supply in 440v, 60 hz, for opening and closing operation of throttle valve of 2900mm diameter, for a Design pressure PN40.
Supply and installation of extension manufactured in API 5L x42 carbon steel pipe, with a thickness of 1 "(25.4mm), internal diameters of 124" x 114 "(3,149.6mm x 2,895.6mm) and total length of 6,850 mm, beveled ends for welding in the field.
