Rehabilitation of pipes through the reinforcement and leakage repair system in the existing lines of the Cutzamala System, State of Mexico.
Rehabilitation of pipes through the reinforcement and leakage repair system in the existing lines of the Cutzamala System, State of Mexico.
Design of the reinforcement of tubes in line 1 and 2 of the Cutzamala System of the Oscillation Tower 5 and the Analco-San José Tunnel in the State of Mexico. p>

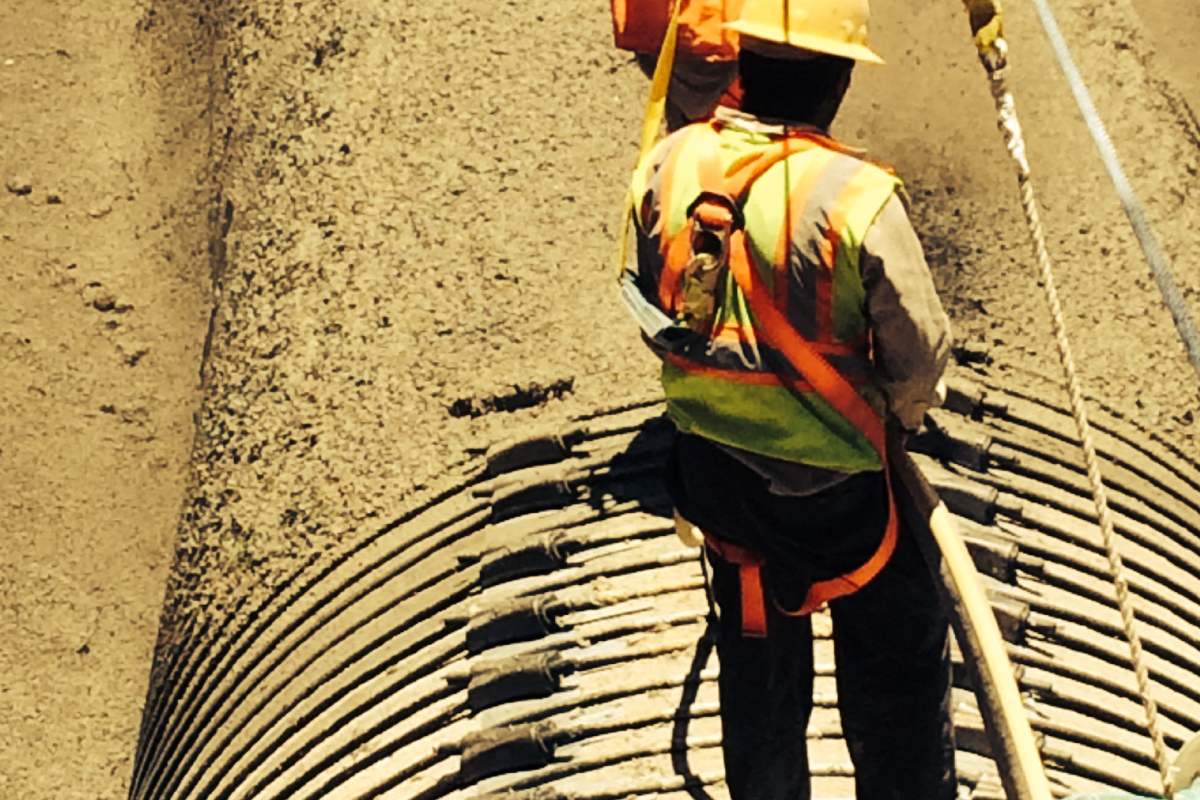

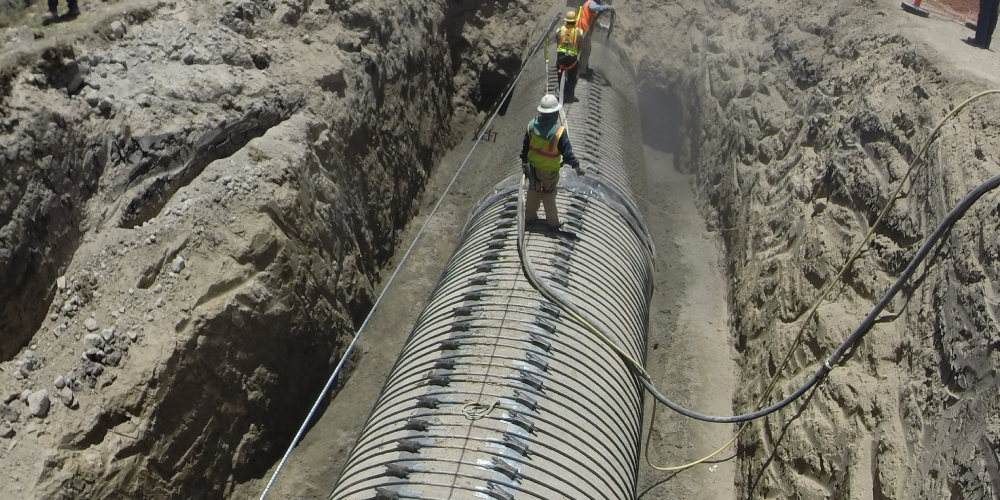

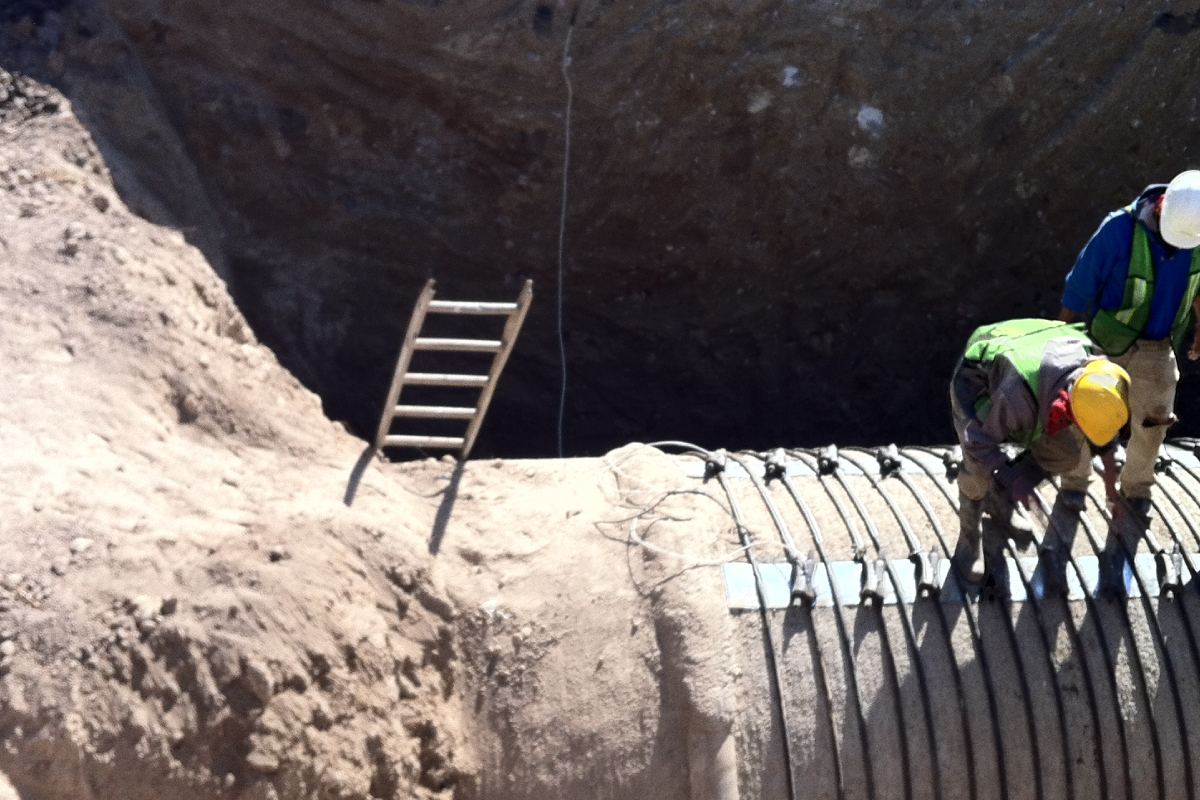

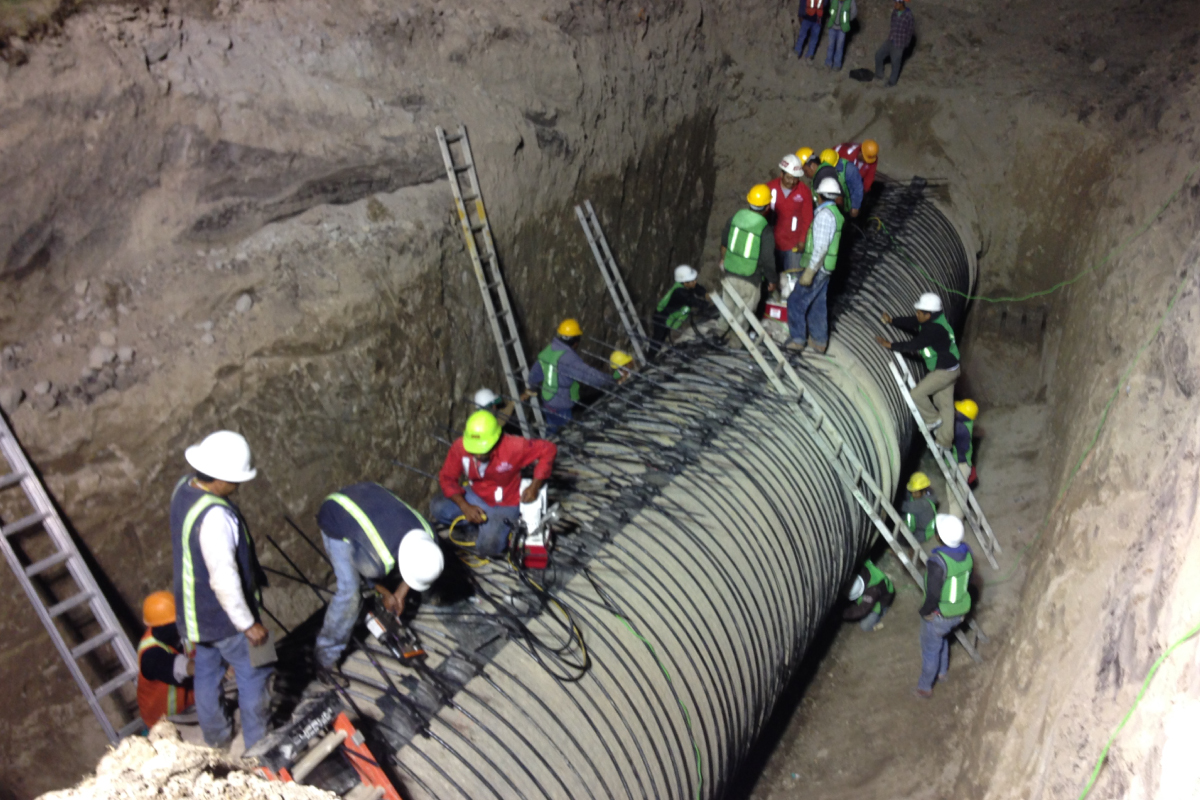

Strengthening of 26 PCCP tubes of 99 "diameter, through the placement of post-tensioned tendons. p>
Hydraulic modeling and analysis of transient pressures in the installation zone of upstream and downstream valves, for the elaboration of the valve opening and closing protocol. p>
Supply and installation of equipment for transient pressure monitoring system upstream and downstream of the 2 V3-A isolation valves installed. p>
Monitoring and technical support work for 1 year of the chain 37 + 190 to 36 + 412, upstream and downstream of the 2 valves of sectioning V3-A installed. p>
Supply and installation of butterfly type isolation valve, manufactured in ductile iron 65-45-12, with seal manufactured in EPDM, with double eccentricity according to EN593 with electric actuator and manual gear coupling, vertical position, epoxy coating bonded by melting 250 micron thickness for drinking water, flanged ends according to DIN EN 1092-2, face-to-face distance according to ISO5752 series 14, inner diameter of 98.43 "(2500 mm) for a pressure working maximum of 10 bars. p>
SCADA system programming in supervisory control center, with screen programming, signal integration and configuration. p>
Supply and installation of insert type TEE, manufactured in ASTM A-53 GR-B carbon steel pipe, with internal diameter of 31.50 "x 31.50" x 31.50 "(800 mm), with a thickness of 3/8 "(9.53 mm). P>
Supply and installation or 90 ° elbow in a piece made of carbon steel pipe ASTM A53 GR B, with a thickness of 3/8 "(9.53 mm), and beveled ends to be welded in the field, with inner diameter of 800mm (31.50 "). Configuration of communication link, programming, configuration and link tests. P>

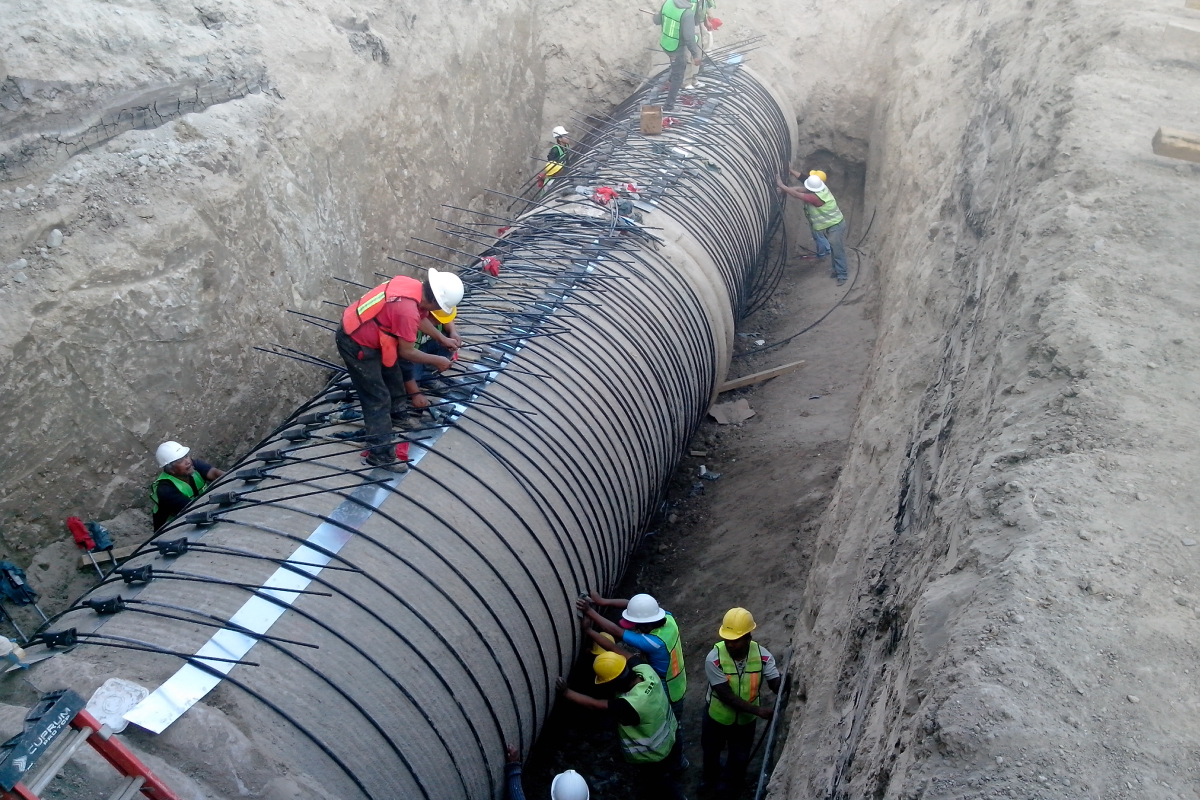

Supply and installation of extruded tendons with plastic coating, type DSI including: wedges, protection seals for corrosion, side plates, grease, portacuñas and anchor wedges, seals according to design approved by the dependence, for tubes of 7.32 meters of length for a working pressure of 100 mca

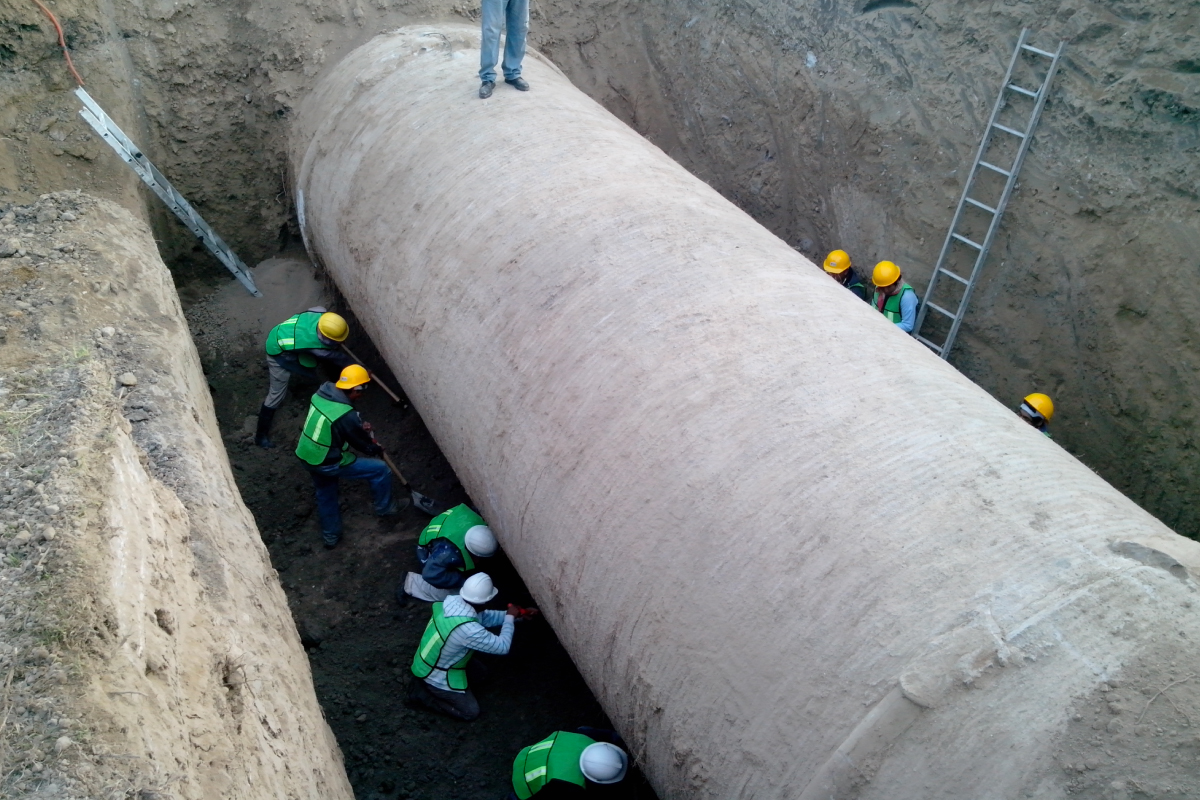

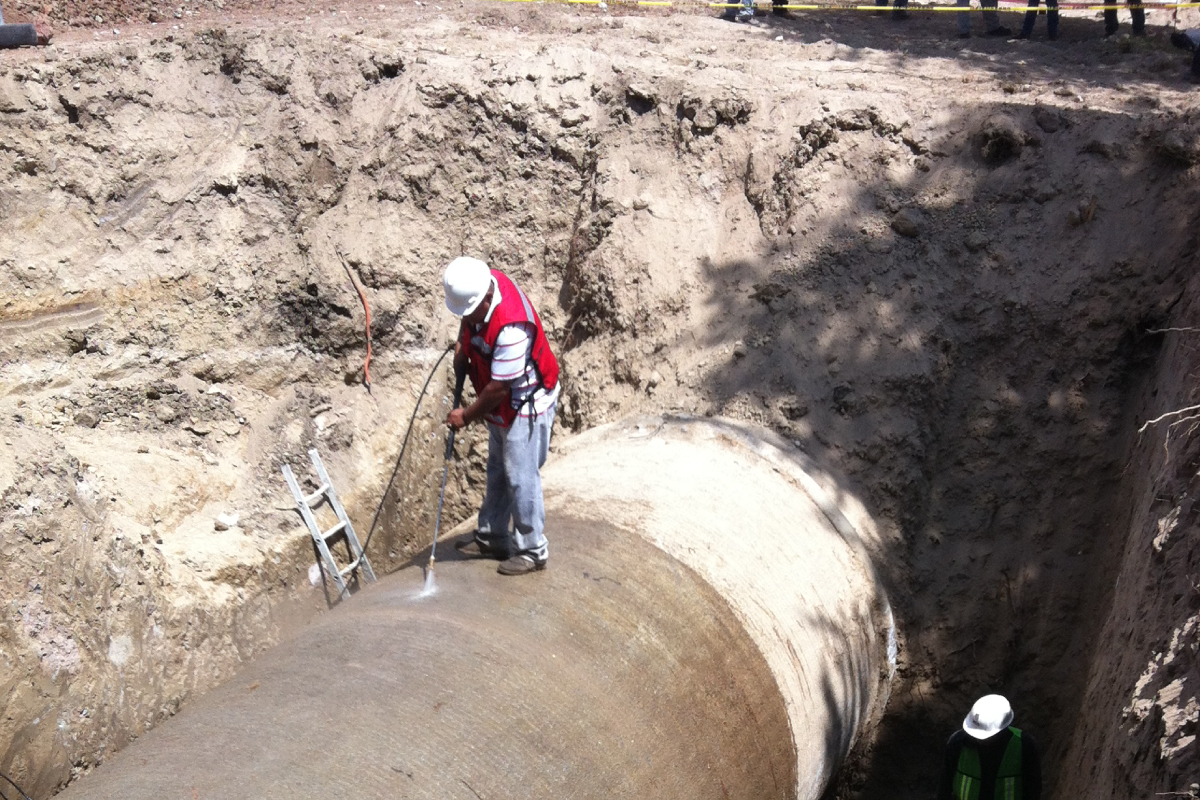

Structural design for the repair of existing concrete pipe of 99 "diameter by post-tensioned tendon method. p>
